Ultra Precision Sheet Coater
Introducing our state-of-the-art, extreme precision knife-over-plate sheet coating machine, ideal for test coating on rigid substrates, such as glass and hard plastic. Discover this cutting-edge Japanese technology at our Bloomington, IN facility, where affordable trials are available.
Key features include:
- Extremely smooth blade movement, powered by precision linear servo motors.
- A 4cm thick slate plate that is perfectly smooth and parallel, enhanced with vacuum suction for optimal stability.
- An adjustable gap for versatile coating applications.
Ideal for pre-R2R test coating with costly materials.

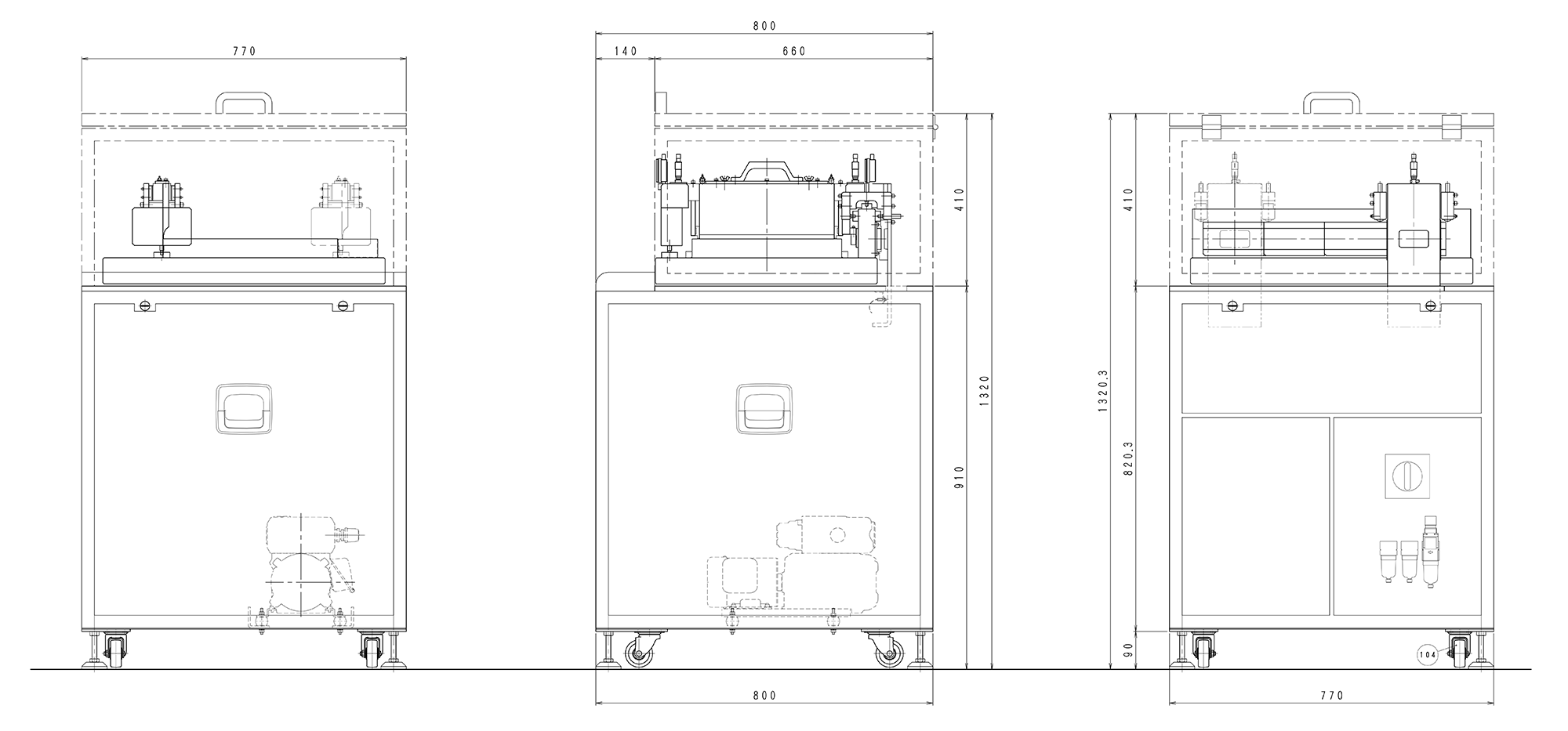

Drawing
Specifications
| βCoater ™ | Standard |
|---|---|
| Coating Method | Knife-over-plate, sheet coating |
| Reference Coating Thickness | 20um to 200um and above |
| Maximum Coating Dimension | 320 mm x 400 mm |
| Maximum Substrate Dimension | 320 mm x 400 mm |
| Dryer | N/A |
| Line Speed | 0.5 m to 3 m/min |
| Coating Technique | Variable gap blade |
| Driving System | Linear servo motor |
| Linear Guide | Air bearing flotation |

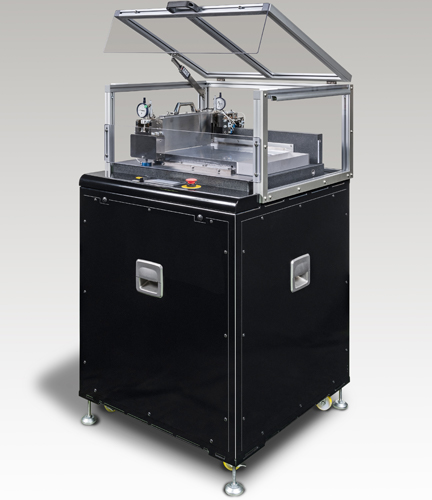

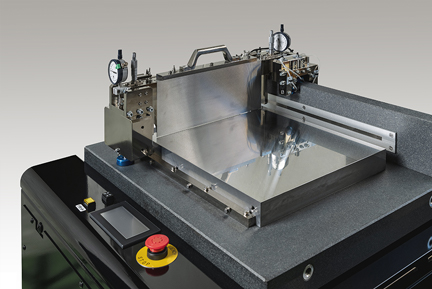

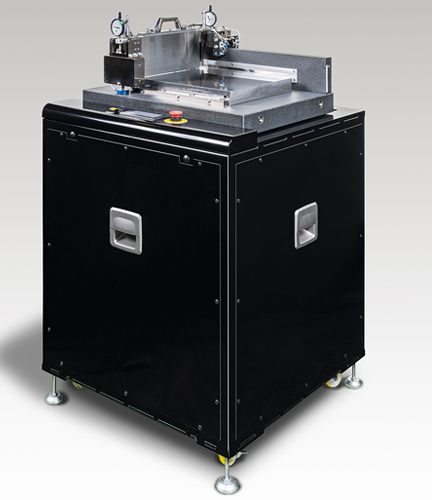

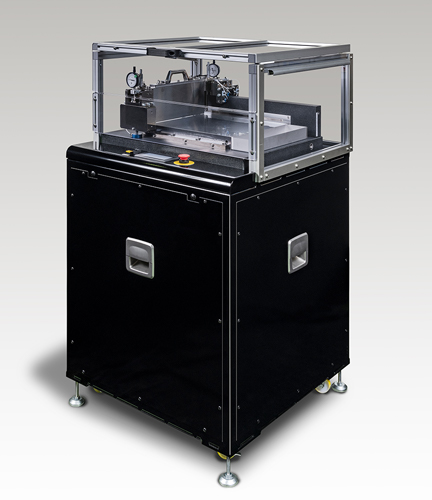

Alternate Views
βCoater™
βCoater™
βCoater™
Videos
βCoater™
