All-in-One Test Coater for Thin-to-Thick Roll-to-Roll Coating
Introducing Yasui Seiki’s newest packaged coater, the TRI-Coater™. This all-in-one, thin-to-thick roll-to-roll test coater features MICROGRAVURE™, slot die, and knife coating heads. It boasts variable coating angles for the slot die and automatic tension control with a detachable touch panel. A perfect high-end pilot coater for creating reliable market samples.
Special Features
- Single webpath for up to THREE coating heads: MICROGRAVURE™, slot die or knife
- Variable coating angles for the slot die, up to 90 degrees
- Easy maneuverability with detachable touch panel
- Automatic tension control, upgradable to 100N
- Versatile & customizable!

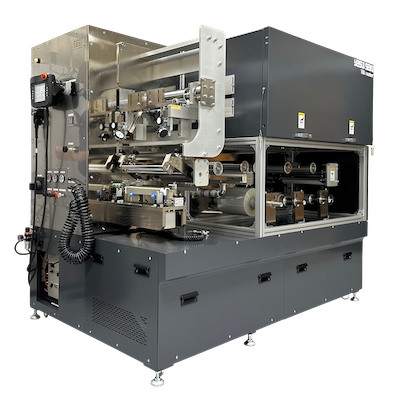

TRI Coater™

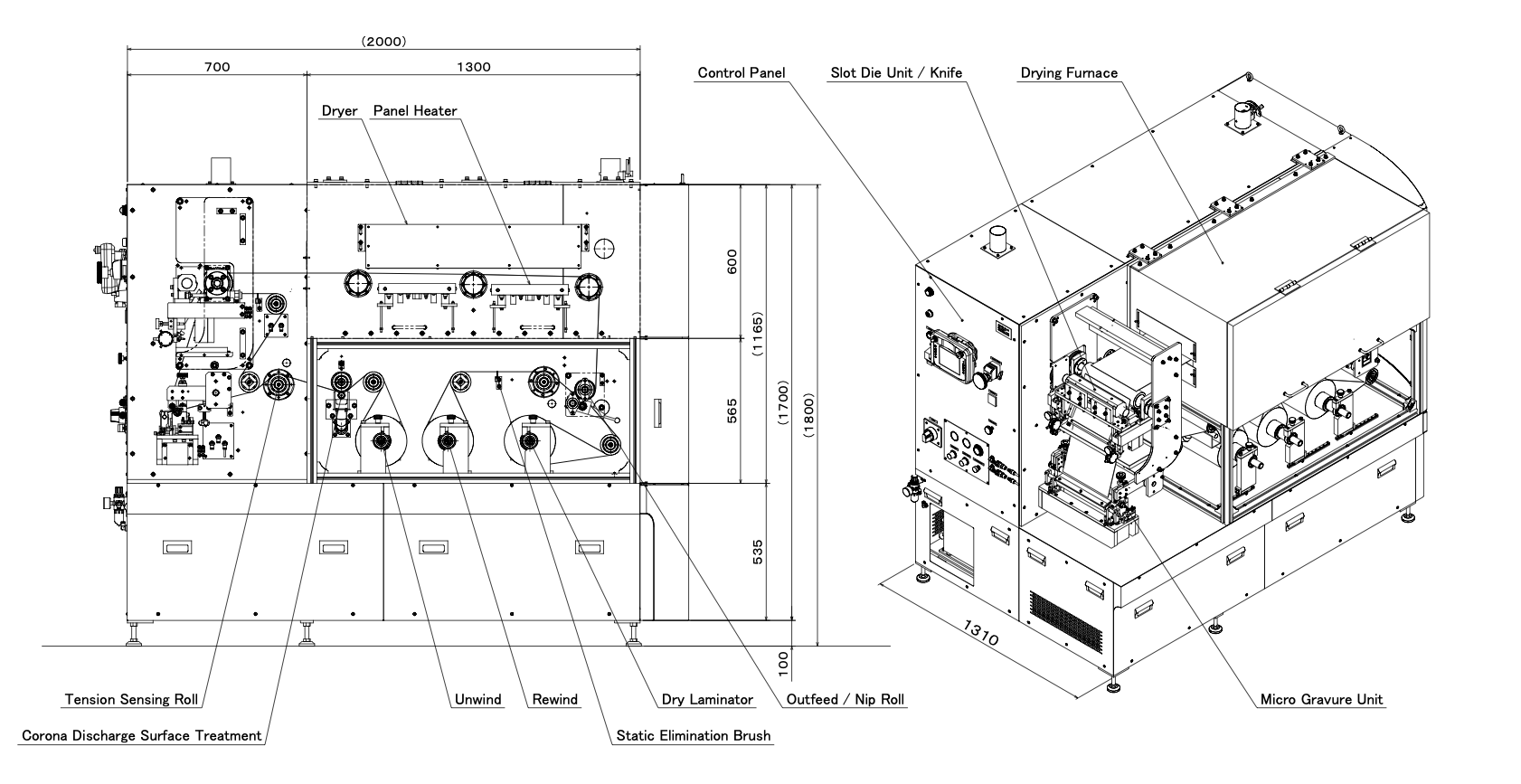

Drawing
Specifications
| TRI-Coater | Standard | Options |
|---|---|---|
| Factory Requirements | 3-phase, 200V, 60Hz 0.5Pa compressed air | – |
| Dimensions | D55” x W90.5” x H75” | – |
| Weight | 4,630lbs | – |
| Coating Methods | Microgravure | Slot-Die Knife |
| Coating Width | MG: 300mm (11.8”) SD: 280mm (11”) Knife: 280mm (11”) | – |
| Substrate Width | 300mm (11.8”) | – |
| Guide Roll Width | 350mm (13.8”) | – |
| Unwind/Rewind | Max 200mm (7.8”) diameter Max 70kg (154lb) | – |
| Core | 3” Airshaft | – |
| Tension | Max 50N | 100N |
| Dryer | 1.3m (4.25’) Hot Air IR Panel Max 180C (356F) | Dryer Extension (2 zones) |
| Line Speed | 0.1 – 2 m/m (0.33 – 6.5 f/m) | – |
| Control | PLC | – |
| Corona Treatment | – | Yes |
| UV System | – | Metal Halide LED |
| Dry Lamination | – | Yes |
| Edge Protection (EPC) | – | Yes |
| VOC Cover | – | Yes |
| Safety Cover | – | Yes |
Special Features

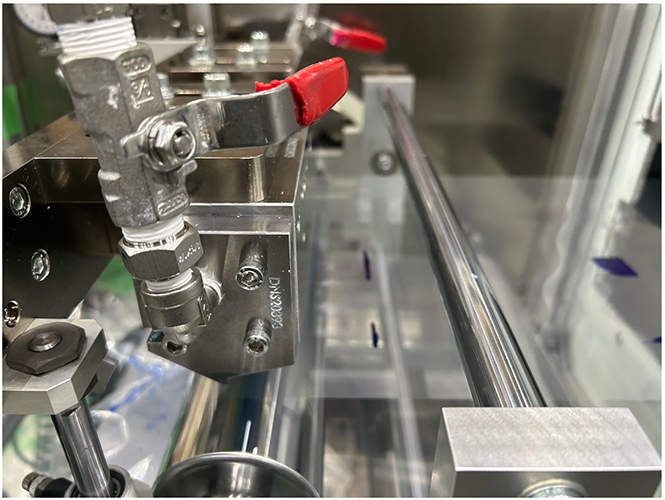

Variable slot die head

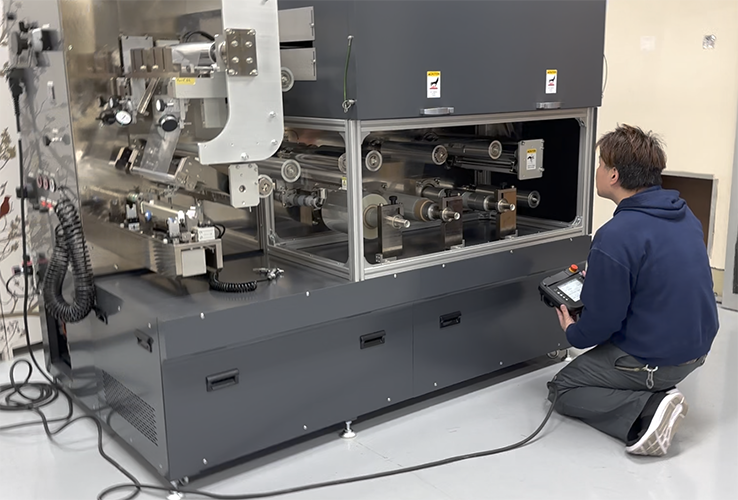

Detachable HMI

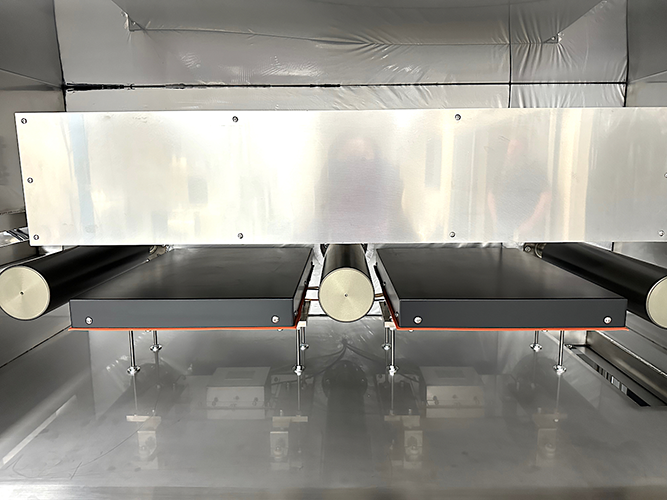

IR panel heaters

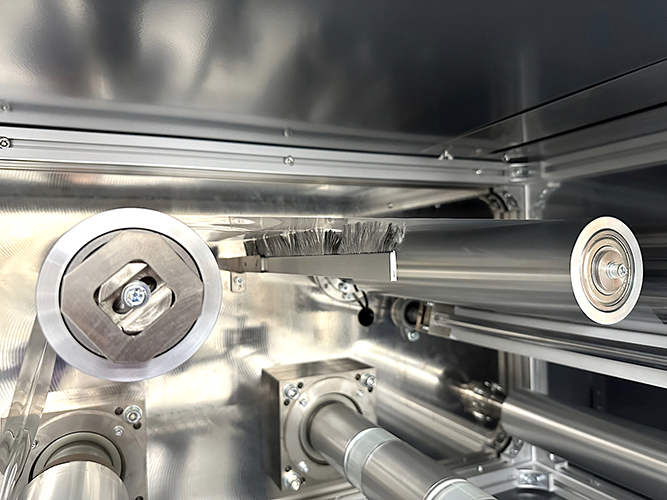

Static remover brush
